Catena 65
Photo 1 en taille normale

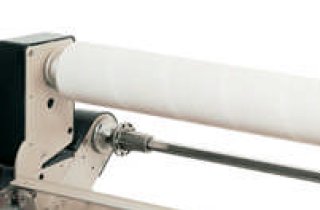

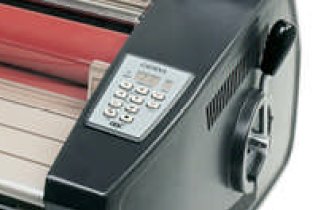

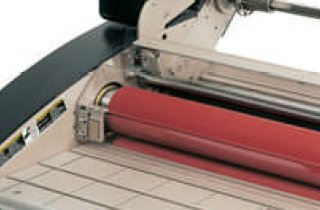

    Le Catena 65 1 Le Catena 65 2 Le Catena 65 3 Le Catena 65 4

  Price :
3390.00 € (Suggested Price)

Product description :
The GBC Catena 65 is one of the highest quality 25" roll laminators available on the market. The GBC Catena 65 is a 25" tabletop laminator capble of lamination, encapsulation, and mounting of digital output using films up to 10mil thick. This thermal film laminator is designed for safe, convenient, moderate laminating production in any office or small print shop environment. The GBC Catena 65 Roll Laminator is ideal for laminating Signs, Posters, Placemats, Event Graphics, POP Displays, Show Graphics, Presentations, Banners, Store Signage, Menus, Courtroom Graphics and more.

# LCD Display indicates temperature, speed and Ready/Wait condition
# Silicone rubber rollers ensure timely clean-up
# Interlocking feed tray and magnetic safety shield for safe operation
# Designed for thermal or pressure sensitive film up to 10 mil
# Roller gap adjustment handles mounting boards up to 3/16" (5 mm) thick
# Rewind roller peels away pressure sensitive release liner
# Infrared heating coil distributes heat evenly and improves lamination quality
# 8 bit microprocessor temperature control guarantees fast response time
# Cooling fan ensures smooth, flat output
# Exclusive preset temperature and speed settings for each film thickness
# Fine tuning override controls for both temperature and speed for variations in paper conditions
# Infrared heat detection provides instant reaction to heat changes on the silicone rollers
# Max. Roll OD 5"





Supplies
Laminating Films :
- Polyester reel Mandrel of 25 mm. .
- Other Laminating and Assembly Films

Features
Model GBC Catena 65
Maximum Doc Size 25"
Speed 1.5' - 5' per minute
Compatible Film 1.5 - 10mil
Core Diameter 1" or 2.25"
Dimensions 39"W x 17"H x 18"D
Weight 84 lbs.
Warmup Time 10 minutes
Adjustable Speed Yes
Warranty 90 Day Manufacturer
Safety Approval UL, CE, CSA Listed, TUV Certified
Power Requirements 120V, 60Hz, 12 amps


Supplies




Polyester reel Mandrel of 25 mm
Hot film of superior quality
Activation temperature 100-120°
Available in Glossy and Matt finishes
Pckg: Number of reels per pack.

Thickness (in microns) Size Finish Pckg Circa €/sqm Price in € Qty Cart
